Overview

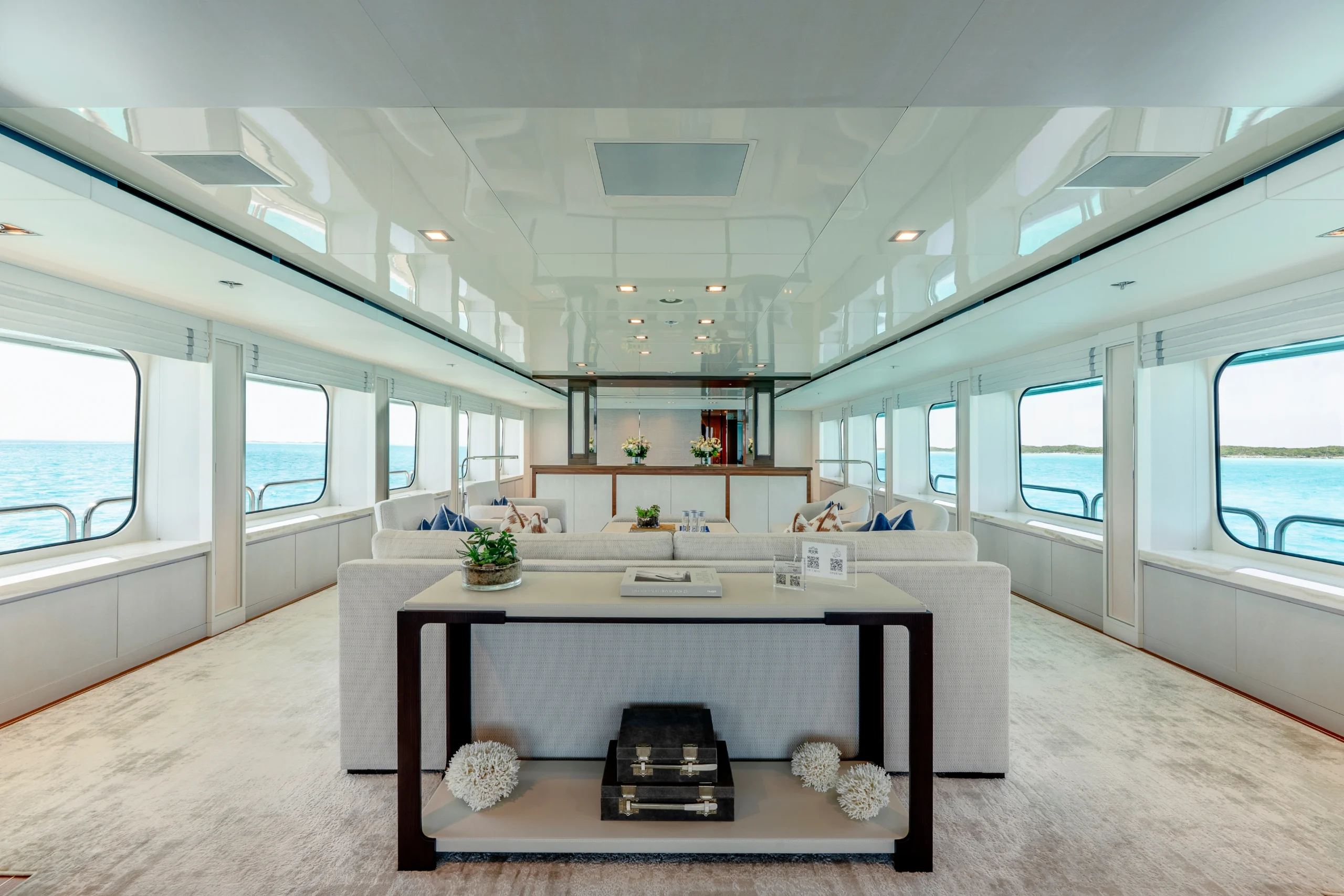

Motor Yacht Chasseur’s Interiors provide the pinnacle of refined luxury. Each detail has been mindfully designed to pleasure the most selective connoisseur. Milk glazed figured Sycamore walls filled with an abundance of impressive windows graciously surround Chasseur’s light, modern, elegant interior. Her classic teak interior flooring is beautifully accented with holly inlays and adorned with plush silk area rugs. Each piece of furniture is customized to offer the highest level of comfort and performance. Her handcrafted Santos Rosewood casegoods are embellished with elements of polished stainless steel and shagreen. Chassuer’s main stairwell is a sculptural work of art showcasing glass and woven leather walls with floating glass treads. Her six luxurious staterooms with en suite bathrooms will comfortably accommodate 12 guests. Each stateroom is equipped with autonomous control of an extensive movie and music library, U.S., Caribbean and European satellite television, iPad interface, and the fastest internet speeds available. Every guest bathroom aboard this vessel is clad in exotic onyx stones sourced from the finest quarries around the world. The interior and exterior bar surfaces are composed of backlit crystal agate and mirrored glass. The outdoor living areas provide abundant opportunities for dining, entertaining and basking in the sun. The Sun Deck arrangement features a full height bar, large Jacuzzi tub and lavish lounge areas. The bridge deck will offer two alfresco dining arrangements as well as a chic open air lounge area. The main aft deck provides a lavish seating arrangement and a full height service bar area. All exterior decks will be fully equipped with ample room designated for a helipad and toys.

Christensen Shipyards was founded in 1983 in Vancouver, Washington, and builds state of the art yachts of 120’ and more for discerning clients who recognize Christensen’s global reputation. Christensen Shipyards has been a staple in the yachting community and the Pacific Northwest for over 30 years. The shipyard encompasses over 300,000 sq. ft. of climate controlled manufacturing space and employs 400 craftsmen. State of the Art facilities and modern lean manufacturing techniques enable Christensen to adhere to high manufacturing standards and build yachts of unsurpassed quality and beauty.

Layout

Layout | Floor Plans

Specifications

Yacht Name: M/Y CHASSEUR
Builder/Year: Christensen Shipyards, LLC. / 2017
Naval Architecture: Christensen Shipyards, LLC.
Interior Design: VARO Interior Design
Architecture Lighting Conslt: Orsman Design Inc
Classification: ABSXA1 Commercial Yachting ServiceXAMS & MCA-LY2 Compliant
Construction: Hull & Superstructure: Vacuum infused FRP foam-cored sandwich composite

Capacities

Fuel: 16,400 US Gallons
Fresh Water: 3,800 US Gallons
Lube Oil: 300 US Gallons
Waste Oil: 300 US Gallons

Demensions

Length Overall (LOA): 160’ 0”
Length at Waterline (LWL): 42’ 5”
Beam (molded): 29’ 0”
Draft (full load) Est.: 8’ 1”
Draft (light load) Est.: 7’ 4”
ITC Tonnage: Less than 500 GT
US Tonnage: Less than 300 GT
Displacements (full load): 913,000 lbs

Speed

Maxium: 16 Knots
Cruising: 14 Knots
Range: 4000+ Nautical Miles

Equipment

Main Propulsion

Main Engines: (2) CAT 3512C series, C-rating1650 HP @ 1800 RPM Maximum Continuous Rating with pre-lube & coolant pre-heat systems
Main Gears: (2) ZF Model 5055, straight offset, 2.96:1 ratio with trailing pumps & trolling valves Propulsion
Shafing System: (2) 5” Diameter “Aqualoy-22”
Propellers: 2) VEEM - 5 Blades, NiBrAI, CNC machining

Generators & Electrical System

Generators: (3) 99 KW @ .8 power factor
Main Switchboard: Hyak Electroworks Integrated shore power conditioning & conversion system with full auto-paralleling control system. Converts any input voltage & frequency from shore power.
DC Electrical System: (2) 24 VDC Battery Banks with battery chargers

HVAC System

System: Dometic chilled water HVAC system, (3) 15-ton chiller with 45-KW electric heater & Gateway network interface

Auxiliary Machines

Stabilzer Sytem: Quantum QC-1800 Zero-Speed, with (2) custom stainless steel, high-lift 4.5 m2 fins
Bow Thruster: ABT TRAC-24"" dual-prop tunnel thruster with 86-KW AC electric motor
Steering System: (2) Jastram electro-hydraulic power packs with emergency manual helm pump
Fuel Oil Centrifuge: Alfa-Laval, model MAB-103, 237-GPH
Fuel Filtration: (2) Primary & secondary filtration systems (3) Racor model 804MA30 filters for gensets (1) Fuel filter/water separator, Henek Fluid System 30-GPM flow rate
Toilet Systems: Planus
Sewage Treatment System: Tecnicomar, model "ECOmar 16", IMO MEPC-159(55) Certified
Watermarkers: (2) FCI “Neptune” Watermakers @ 2400 GPD ea.
Water Filtrations: Silver -impregnated carbon-filter, with silver-iron and UV sterilizer.
Oily (Bilgel) Water Separator: Recovered Energy Inc., model BOSS2TY-107, USCG Certified, ABS Type-Approved & IMO MEPC - 07(49) compliant

Entertainment System

System installed by: Jobe Systems

Communication System

VSAT: (1) Sailor 900 KU-Band System & Sea Tel 100 TVHD Back-Up Sat-Phone: KVH 01-0319 TracPhone FB150
Cellular Phone: (1) Globe Surfer III Quad-Band GSM cellular
VHF: (3) Icom M604 VHF radios
Loud Hailer: (1) Raymarine Ray 430 loud hailer
GMDSS/AIS: (2) Furuno FM8900S VHF 25 Watt DSC-VHF/FM Radiotelephone GMDSS
GMDSS: (1) Furuno FS1575 SSB 150 Watt MF/HF GMDSS Compliant Radiotelephone with DSC (1) Standard-C Furuno FELCOM18 GMDSS/LRIT (2) ACR GMDSS Handheld VHF for life raft (2) Furuno PP510 Printer (1) Furuno NX700A Navtec Receiver
Wireless Network: Wireless network covering all decks

Monitoring System

System by: Hyak Electroworks

A programmable logic based system, with (6) 12” color touch-screens installed throughout. A SIMnet integration and monitoring network connects the vessel’s system to allow remote monitoring, data logging, power management and diagnostics.

Navigation System

System installed by: Johnson Electronics & Machinery, Inc.

Monitors: (6) Hatteland 19” monitors with Extron Switching
Radars: (1) Furuno FAR2137BB, 30-KW, S-Band (1) Furuno FAR2127BB, 25-KW, X-Band * Both with automatic radar plotting aids (ARPA)
Compass Gyro/Satellite: (1) Furuno SC110 4.5 Inch Monochrome LCD Display, Satellite Compass
Magnetic Compass: (1) Delta spherical magnetic compass
Autopilot: (1) Anschutz Pilotstar D (1) SIMRAD AP70
Sonar/Sounders: (1) Furuno CH250BB Searchlight Sonar (1) Furuno FCV 1200BB Color Video Sounder (1) B&G Depth Sounder
GPS/Plotter: (2) Garmin GPSMAP® 6212 Chart plotter (1) Transas Navi Sailor 4000 ECS & Custom Computer
Weather Fax: (1) Standard-C Furuno FELCOM18

Navigation System Cont.

Wind/Speed Log: (1) B&G HY3-SYST-1 Hydra 3000 Cruise Pack, with (3) additional displays.
Night Vision Camera: (1) FLIR M-625XP pan & tilt (2) FLIR MD-625 fixed

Tenders & Toys

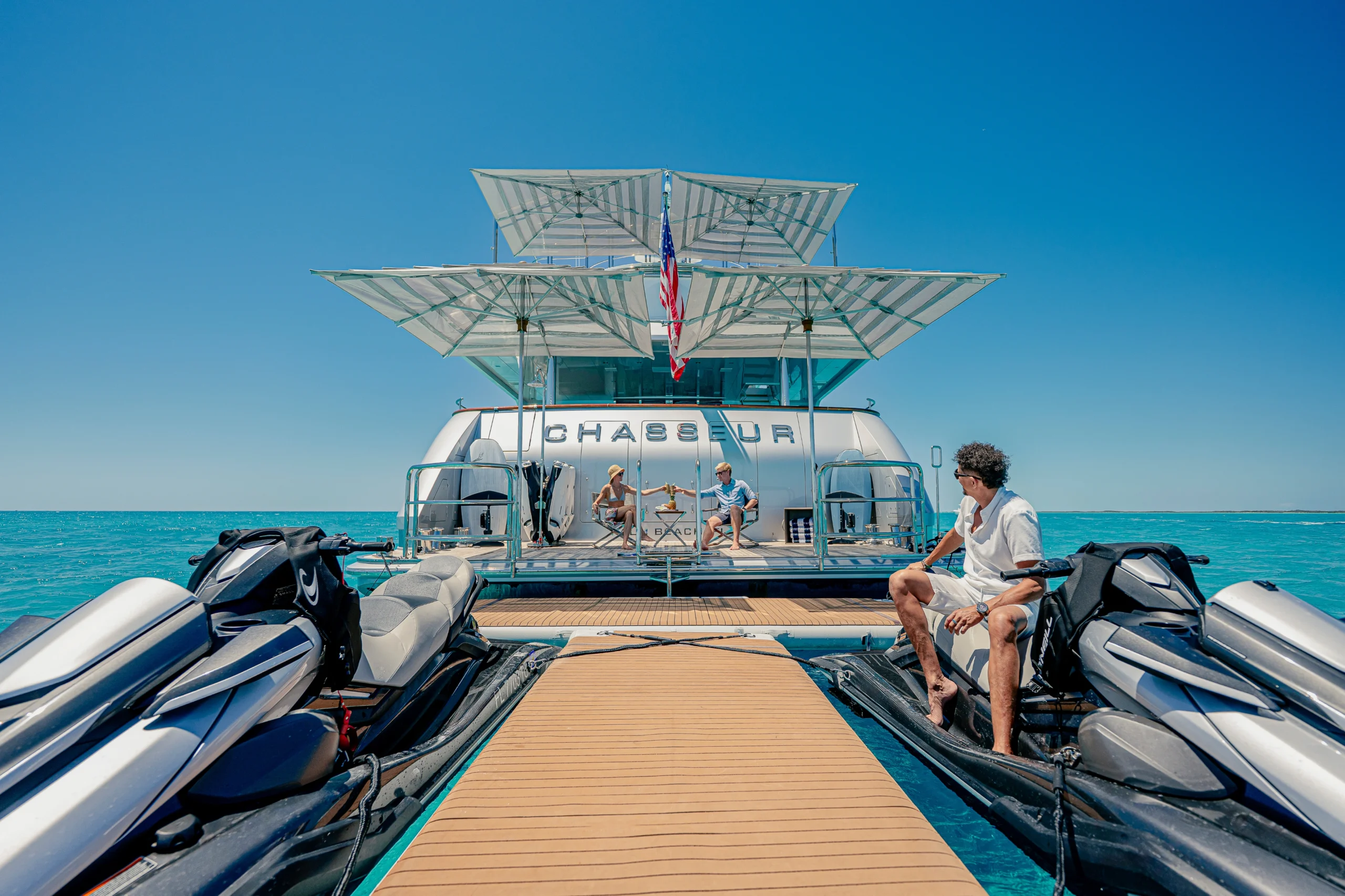

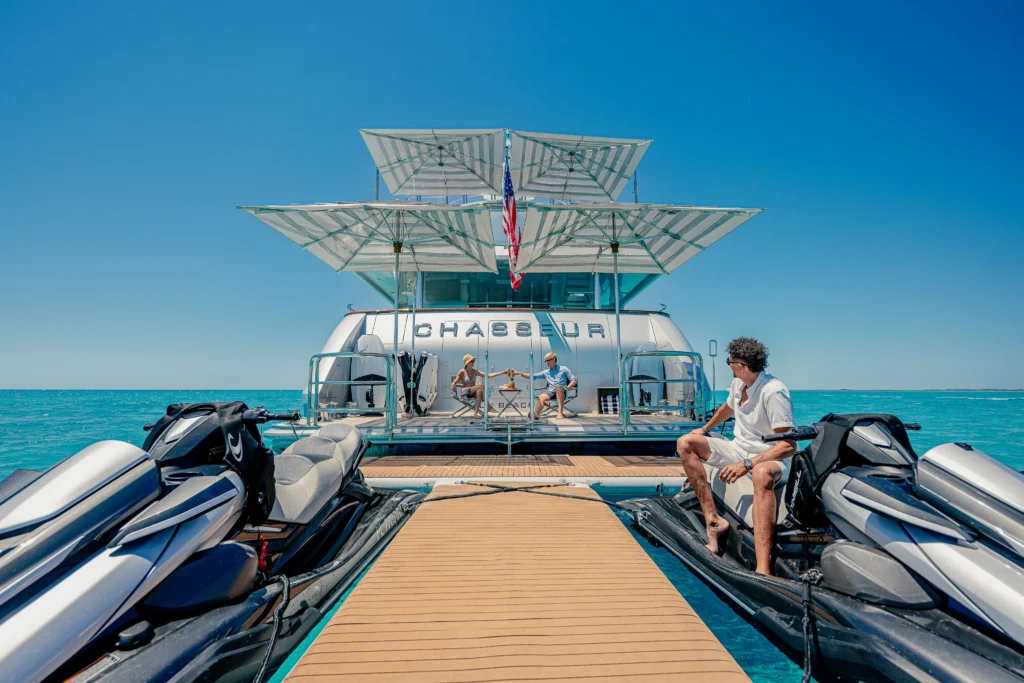

Tender: (1) Owner’s tender - Novurania 23’ - LX-750 (1) Crew’s tender - Novurania 18’ - EQ-540 (2) Sea-Doo GTX-155 jet skis. (1) Tow behind tender - Intrepid 40' Cuddy powered by (3) Mercury Verado 350hp outboards
Dive Gear: (1) Brownie dive compressor

Deck Equipment

Anchor Windlass: (2) Maxwell SY-26 windlasses electric
Capstans: (6) Maxwell VC-6000 Electric
Anchors: (2) 360KG “Pool N” type, balanced, electro-polished stainless steel anchors
Anchor Chain: (2) 550 feet of 22mm grade-2 stud-link
Boat Crane And Davits: (1) Steelhead Marine 5000 lbs capacity (1) Steelhead Marine 3500 lbs capacity
Passerella: (1) Sanguineti 20’ (6 meter) hydraulic telescoping extension with swivel platform

Security Equipment

CCTV System: Networked through the A/V control system
Cameras: (7) Network Color Camera with pan-tilt-zoom
Monitors: Cameras can be viewed from any TV or fixed monitor onboard via the Crestron switching system

Safety Equipment

Life Rafts: (4) Zodiac 16 person USCG and SOLAS approved
Life Rings: (4) SOLAS approved type
EPIRBS: ACR 2742 (CAT 1, with GPS)

Fire Fighting Equipment

Fire Detection & Alarm: Consilium Salwico CS4000, with smoke, heat and flame detectors where necessary.
Fixed Fire Protection System: Optec International “SoftEx” water mist system in all living spaces. FM-200 fixed fire extinguishing system in the Engine Room.
Portable fire Extinguishers: Provided throughout as required by ABS & MCA

Appliances

Main Galley Equipment: 2) Wolf 30” induction cook top (1) Extraction hood with independent fixed fire-extinguishing system (2) Wolf electric ovens (1) Wolf microwave oven (1) Glo-Ray infrared food warmer (2) Wolf warming drawers (2) Liebherr refrigerators/freezers (1) Sub-Zero wine cellar – in pantry (1) Sub-Zero ice maker (2) Miele G7856 dishwashers (2) KitchenAid trash compactors
Crew Gallery Equipment: (1) GE microwave (1) Walk-in cooler with (2) condensing units (4) Sub-Zero upright freezers (2) Sub-Zero refrigerator drawers (1) Whirlpool dishwasher
Laundry Equipment: 3) Commercial duty washers (3) Commercial duty dryers
